Optimize Efficiency with M2M Kamstrup Relay and WMBus

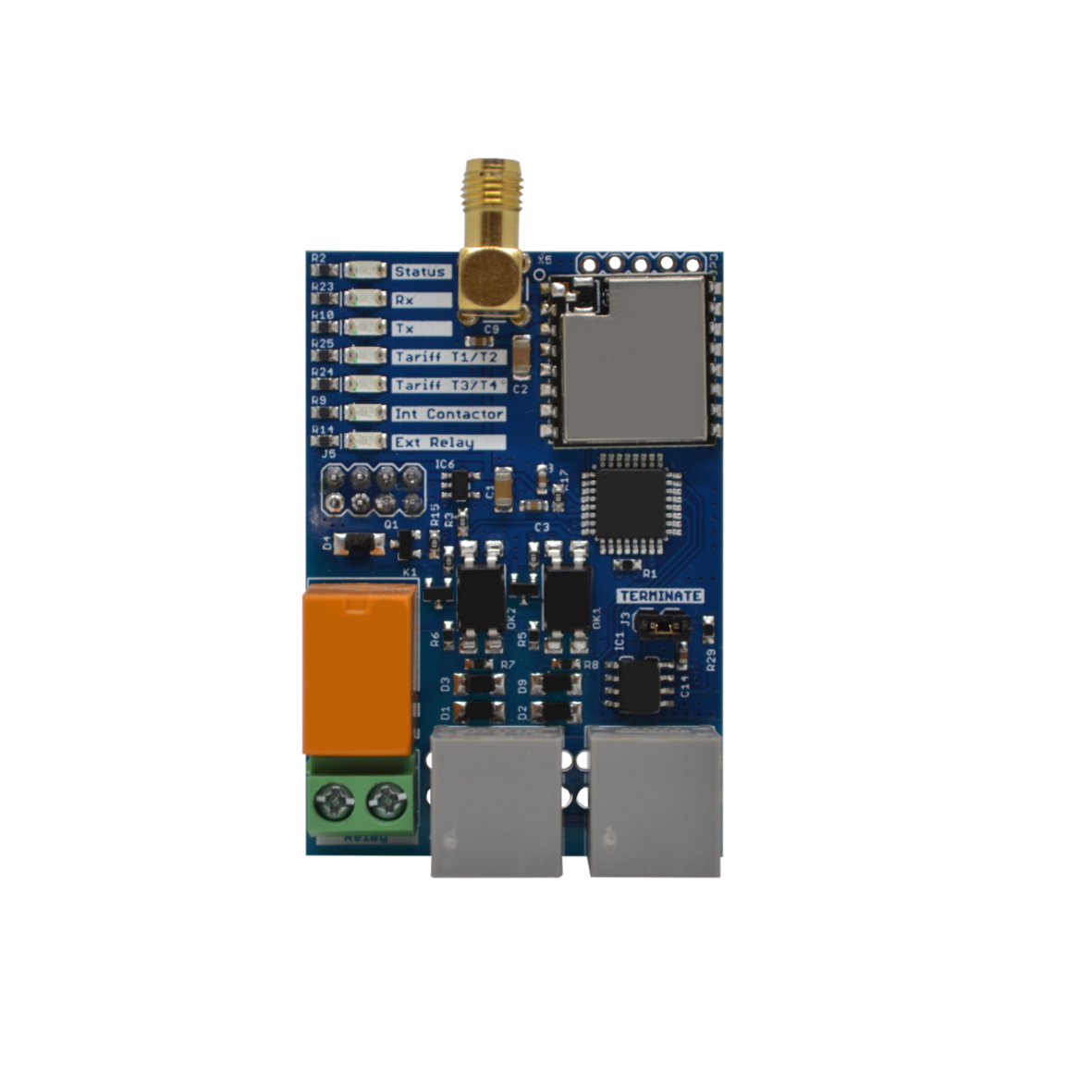

M2M Kamstrup RS485 with Relay and WMBus/LoRa

Meter Specs

General

Technology

LTE-FDD (Cat.1)



Frequency Bands

B1/B3/B8



LTE Speed

Max 10Mbps(DL)/5Mbps(UL)



Connectors

SMA (Right)

Cellular 50 ohm Antenna



SMA (Left)

Optional WMBus or LoRa Receiver Antenna



Degson 5MM

RS485



Power Requirements

DC Supply

4.1V



Consumption

5W max



Physical Description

Dimensions

78mm x 58mm x 21mm



Weight

86 grams



Environment

Operating Temperature

-35°C to +75°C



Humidity

Relative humidity 15% to 93% non-condensing



Certifications, Compliance, Warranty

EMC Compliance

ETSI EN 301 489-1: V2.2.3 / EN 301 489-52: V1.1.0



Radio Compliance

ETSI EN 301 908-1 V15.1.1 / EN 301 908-13 V13.2.1



Safety Compliance

IEC / EN 62368-1



Warranty

12 Months

12 LEFT

  • Manage & Monitor Device Usage Easily

  • No More Manual Control Struggles

  • Accurate Energy Consumption Metrics

  • Reliable Communication with RS485 and WMBus/LoRa

  • Integrated Relay for Enhanced Control

  • Access Real-Time Data for Improved Efficiency

  • Suitable For: Homes, Office Buildings, Industrial Sites
