Features:

- Maximum current of 100A per phase

- Compact meter design with British Standard layout

- Easy to install and ideal for new reticulation as well as retrofitting of credit meters with BS footprints

- Proven Cashpower keypad technology

- Meter provides valuable information to help consumers effectively manage and budget their electricity consumption

- Tamper detection

- Significant Reverse Energy (SRE) detection

- Programmable software power limit

- Advanced commissioning / decommissioning feature

- Prepayment / Credit Mode

- STS compliant

- Large display with language independent icons

- High surge withstand capability for areas prone to lightning or other line surges

- SANS 1524-1 and IEC 62055-31 compliant

Technical Specifications

Meter Format:

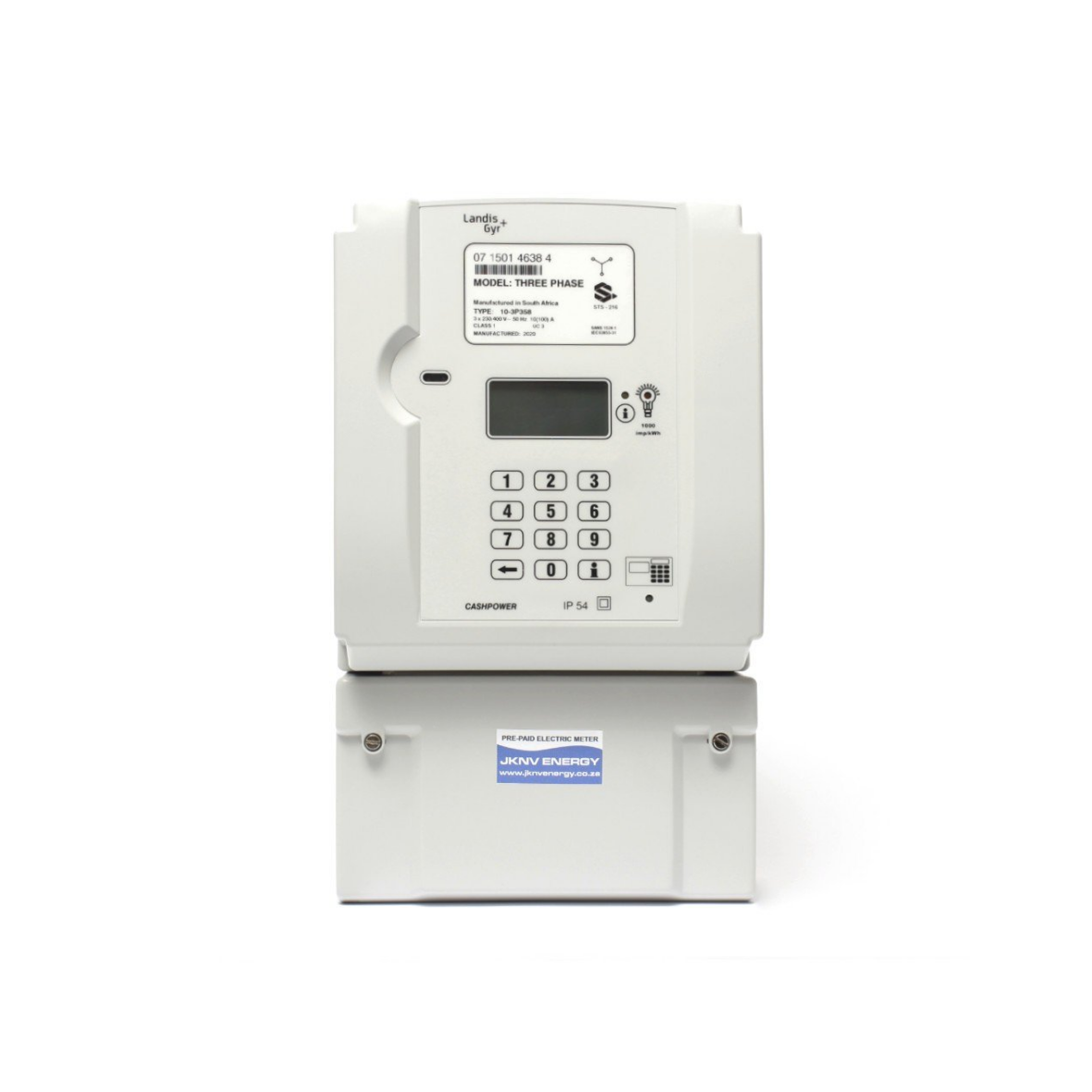

 3-phase four-wire, direct connected prepayment meter

Operation

General

Credit store with decrement-on-usage

Credit entry mechanism

Keypad; encrypted numeric tokens

Token Encryption Method

 20-Digit STS1

Applicable specifications

NRS009-1; NRS009-6-6; NRS009-6-7

Electrical Ratings

Nominal Voltage (Un) - Rated Voltage 230 Volts AC rms (other voltages available on request)

Nominal frequency

50 Hz (60Hz option available)

Operating voltage range

80% to 120% of Un (184V – 276V)

Maximum continuous current (Imax)

100 Amps (factory and field programmable to lower power limits)

Burden

Voltage circuit - <2W / <10VA @ 230V

Current circuit - <2.5 VA @ Base Reference Current (Ib)
