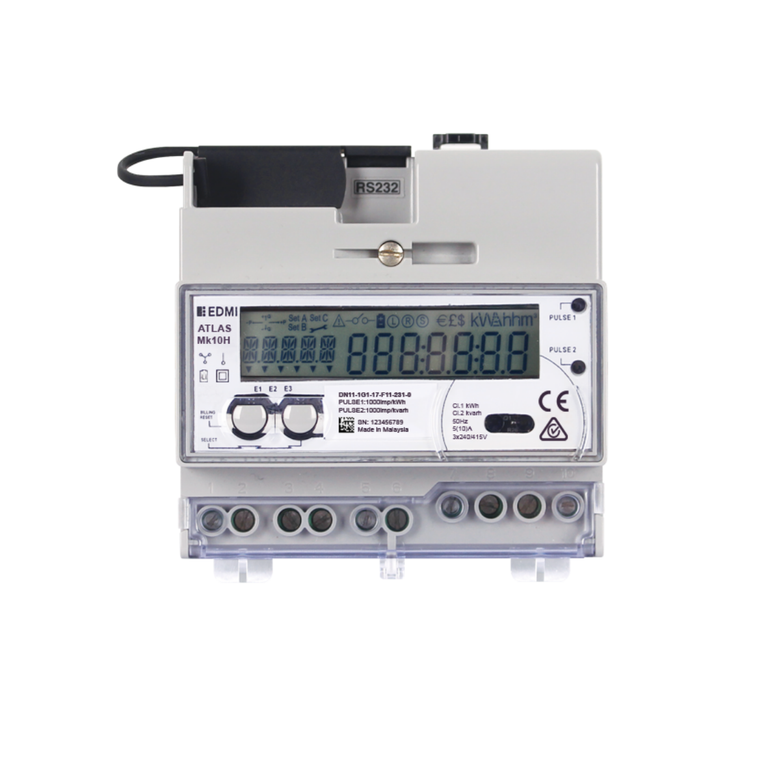

Real-Time Monitoring and High Data Storage for Sub-Metering with the EDMI MK10H

Meter Specs

Voltage:

- Nominal voltage: 220V - 240V

- Operating range: 0.8Un to 1.15Un

- Impulse voltage: 10kV

Current:

- CT range: 1/4A, 1/6A, 1/10A, 5/6A, 5/10A

- CT limit: 20 x Imax for 0.5 seconds

Frequency:

- 50Hz - 60Hz

Load Survey/Profile:

- Up to 32 channels and 2 independent surveys.

- Intervals programmable from 1 to 60 minutes.

Tamper Detection and Alarms:

- Provision for sealing with conventional wire or plastic seals.

- Reverse current detection.

Communications:

- Up to 3 independently working communication ports:

* Optical port: FLAG (IEC 62056-21) RS232 with modem power supply (3.7W, 0.2A).

* RS-485 screw terminal (2-wire).

* GSM/GPRS/3G supported.

Environmental:

- Specified operating range: -25˚C to +60˚C.

- Operating range limit: -40˚C to +70˚C.

- Storage range limit: -40˚C to +80˚C.

- Relative humidity: Up to 75% mean, 95% noncondensing for 30 days.

Optional Extras:

- Antenna

- Modem

- Ariel Extender Cable - 10 m E

12 LEFT

Efficiently Manage & Monitor Sub-Metering Usage
Eliminate Utility Data Inaccuracies
Advanced AMI Capabilities for Seamless Integration
High Data Storage for Extensive Usage Records
Versatile Communication Options for Easy Data Access

Access Real-Time & Historical Data Anytime
Free Access to Our Online Platform with Comprehensive Reports
Suitable For: Sub-Metering Users, Industrial Sites, Commercial Buildings
