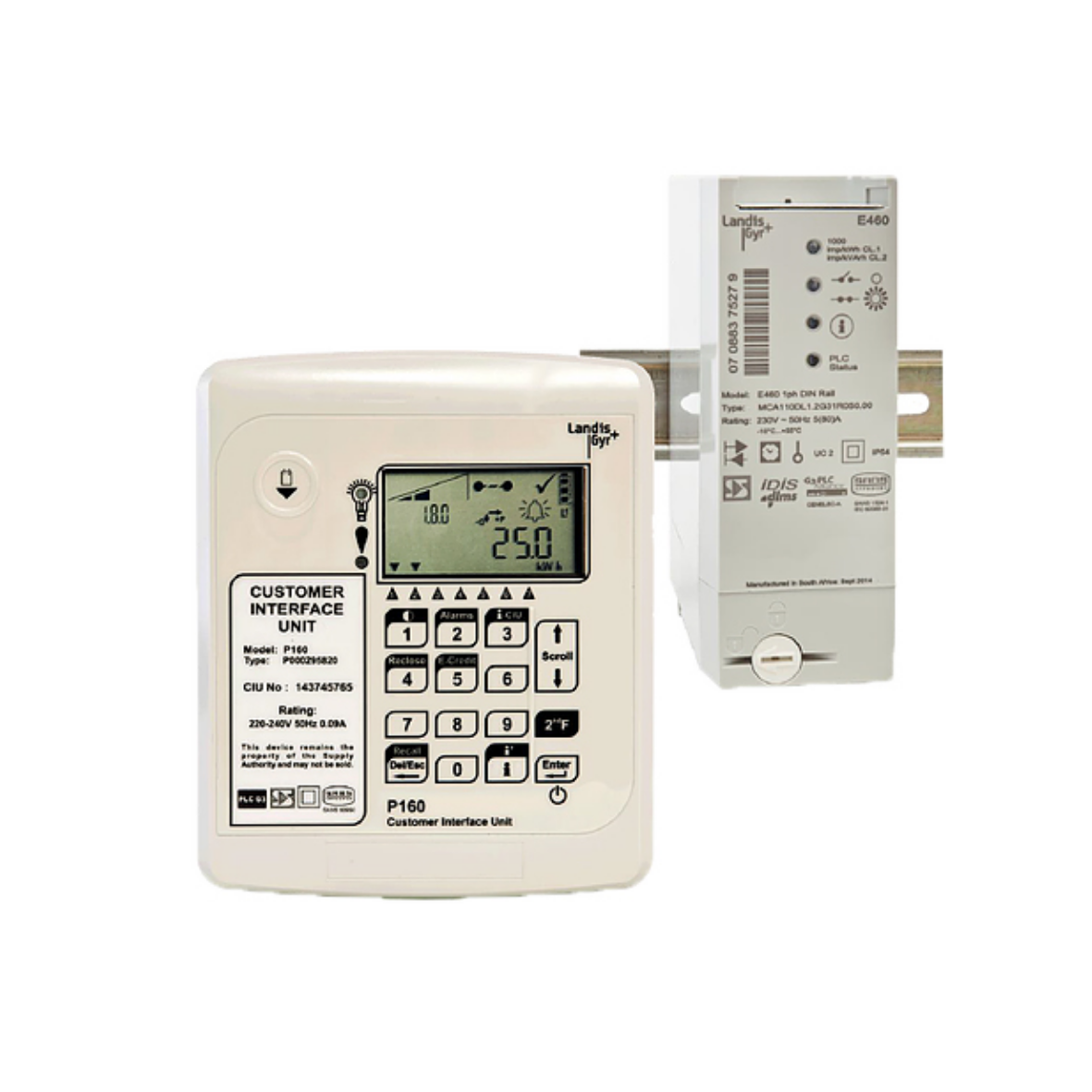

General Overview:
Compatible network:
Single phase, 2-wire
Enclosure format:
Rail mount, with locking clip compatible with 35mm DIN standard rail or flush mounting using keyhole slot and bottom fixing screws. Long and short terminal covers supported.
IEC Specific Data:
- Rated voltage:
- (Un) Wide-range: 110 to 240 Volts AC
Frequency:
50Hz or 60Hz
Extended operating voltage range:
80% to 120% (Un)
Base current (Ib):
5 Amps
Maximum current (Imax):
- 80 Amps
Short circuit current:
- 30 x Imax (≤10 ms according to IEC 62053-21) 2.5kA r.m.s. (Utilisation Category UC2 according to IEC 62055-31)
Meter constant (LED flash rate):
- 1000 impulses / kWh
- 1000 impulses / kVAh1
Measurement Accuracy:
- Active energy, according to IEC62052-11/62053-21 Class 1
- Reactive energy, according to IEC62053-23 Class 2 for Ib = 10A, Class 3 for Ib = 5A
Measurement behaviour:
- Starting current - ≤ 0.004 Ib for Class 1
General Data:
Operating Behaviour
Power consumption in voltage circuit
Active power at Un (max) <2W
Apparent power at Un (max) <12VA
Power consumption in current circuit
Apparent power at Ib (max) <7VA
Environmental Influences Area of application Indoor meter (according to IEC62052-11)
Temperature range
Operation meter -10°C to +55°C Storage -40°C to +70°C
Relative humidity
Maximum ≤ 95%;
Annual mean 75%
Degree of Protection (according to IEC60529) IP Rating IP54 Product is for indoor use and must be installed in a suitable enclosure when used outdoors
Electromagnetic Compatibility
Electrostatic discharges (IEC61000-4-2) Air discharge 15 kV
Electromagnetic RF fields (IEC 61000-4-3) 80 MHz to 2 GHz 10 V/m with load 30 V/m no load
