Sanxing P34S02 3 Phase Meter | Power, Precision & Prepayment Control

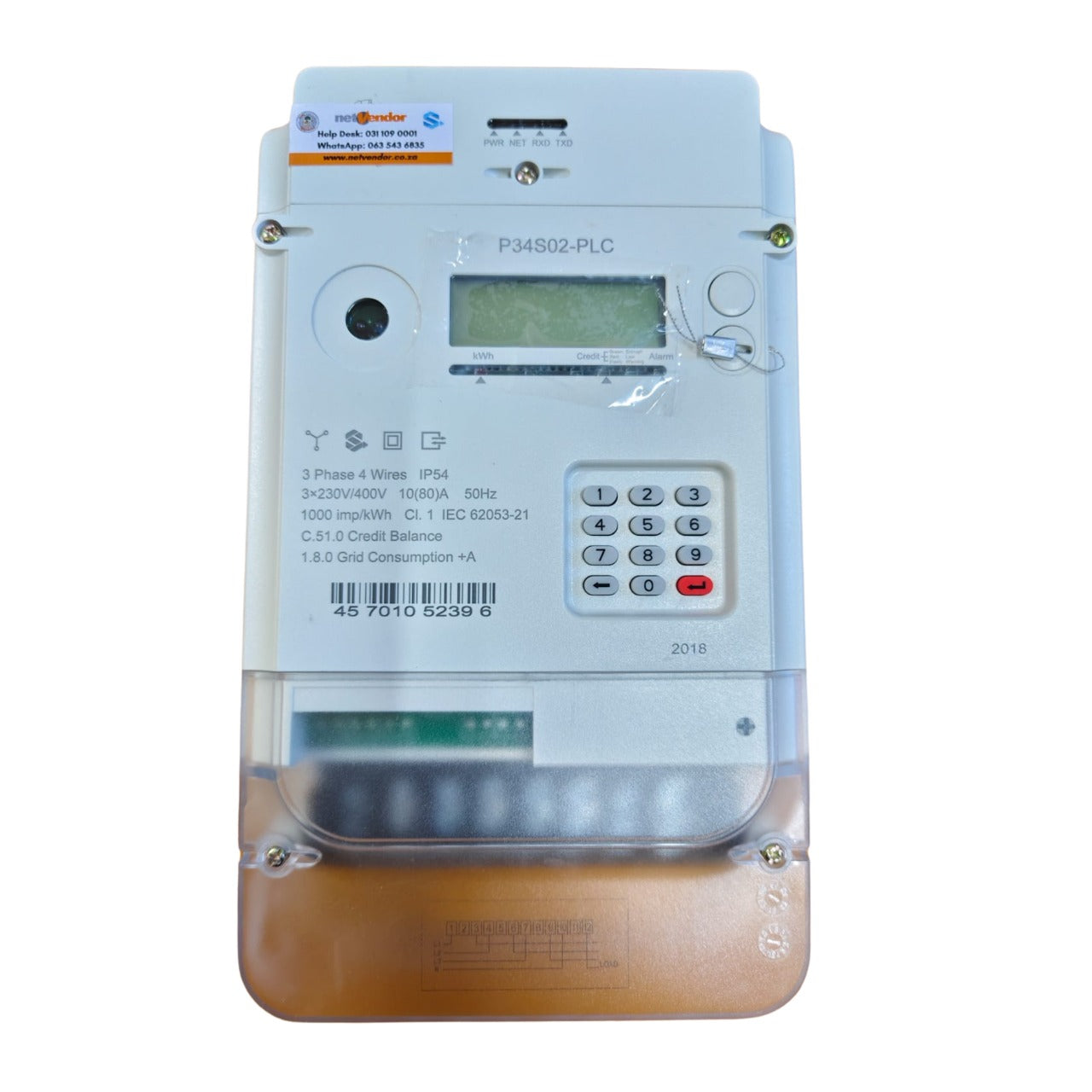

3 Phase Integrated Meter (Prepaid) - P34S02 Keypad - FFM

Meter Specs

Features:

Standard STS prepaid mode

Maximum current: 100A

Voltage: 3 x 230V / 400V

20-digit encrypted token system

Customer top-up via keypad of UIU

Anti-tamper detection

IP54-rated meter enclosure for outdoor protection

Suitable for three-phase, four-wire LV networks

Operates in wide temperature range: -25°C to +60°C

Technical Specifications

Meter Format:
Three-phase, four-wire system for electrical consumption measurement

Voltage:
3 x 230V / 400V

Reference Frequency:
50Hz

Operating Temperature:
-25°C to +60°C

Degree of Protection:
IP54

Current Rating:
5(100)A

Token System:
20-digit STS encryption

Dimensions:

Length: 290mm

Width: 170mm

Depth: 83mm

Weight: ±1.8 kg


⚡ Checking stock...

  • Manage & Monitor Electricity Usage Easily

  • No More Manual Meter Reading Hassles

  • Tamper-resistant with anti-surge design (IP54)

  • Compact BS Housing for Space Efficiency

  • Supports Up to 100 Amps per Phase

  • Ideal for Residential, Commercial, and Light Industrial Use

  • Suitable For: Homes, Office Buildings, Industrial Sites

Quantity

Why Choose netVendor?

50476+

Meters Installed & Migrated

3043+

Complexes and Freestanding Houses Serviced

21+ Years

netVendor is one of the oldest and most reliable metering company's in the country.

Trusted By:

Still not Sure?
Phone or Whatsapp Us on:

031 - 109 - 0001
3 Phase Integrated Meter (Prepaid) - P34S02 Keypad - FFM

3 Phase Integrated Meter (Prepaid) - P34S02 Keypad - FFM

R 2,731.25
